Axial Flux Motor Stator Core for eVTOL & Heavy-Lift Drone Propulsion Custom Wound Core

Engineering Overview: Axial Flux Stator Cores for Next-Generation Electric Aviation

Shunge Steel manufactures custom high-power-density tape-wound axial flux motor stator cores specifically engineered for electric vertical takeoff and landing (eVTOL) aircraft, heavy-payload industrial drones, precision agricultural spraying UAVs, and electric light aircraft propulsion systems. In aerospace electric propulsion, every gram of motor weight directly dictates payload capacity, climb rate, and battery endurance range.

By continuously winding ultra-thin electrical silicon steel strip into a lightweight circular disc and forming high-density radial slot teeth with inert-gas laser profiling, our axial flux stator cores deliver 30% to 50% higher power-to-weight ratios (kW/kg) compared to conventional radial motors. This compact disc architecture delivers high continuous torque at optimal propeller RPMs, enabling gearbox-free direct-drive flight systems with unmatched mechanical reliability.

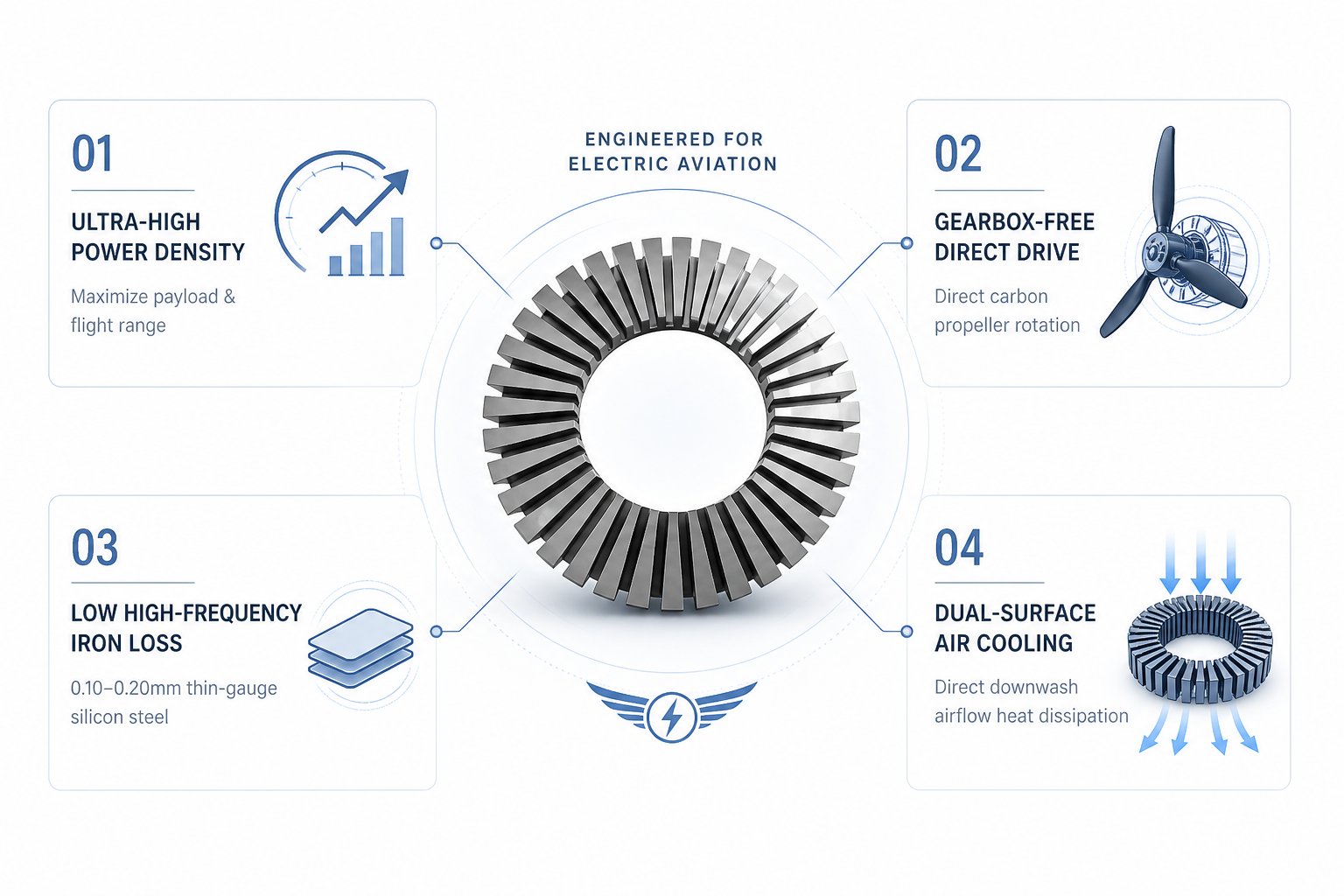

Key Technical Advantages for Aerospace Propulsion

• Ultra-High Power-to-Weight Ratio (kW/kg): The pancake disc form factor maximizes electromagnetic active material utilization and shortens coil end-turns, reducing copper weight while substantially boosting specific torque and power density.
• Gearbox-Free Direct Propeller Drive: Large-diameter disc geometry generates high static thrust torque at lower rotational speeds, allowing large-diameter carbon fiber propellers to be driven directly without heavy, failure-prone reduction gearboxes.
• Low High-Frequency Iron Loss: Utilizing ultra-thin electrical silicon steel (0.10 mm, 0.15 mm, or 0.20 mm) suppresses eddy current losses under high-frequency inverter switching, maintaining peak electrical efficiency during continuous hover and climb.
• Superior Dual-Surface Aerodynamic Cooling: Flat disc stators benefit from large surface-area-to-volume ratios, allowing direct cooling from propeller downwash and airflow, preventing thermal degradation and magnetic demagnetization.
• Zero-Tooling Agile Aerospace Customization: Fast iterative development of customized outer/inner diameters and slot counts via CNC laser cutting, drastically shortening R&D cycles for experimental aviation and defense drone programs.

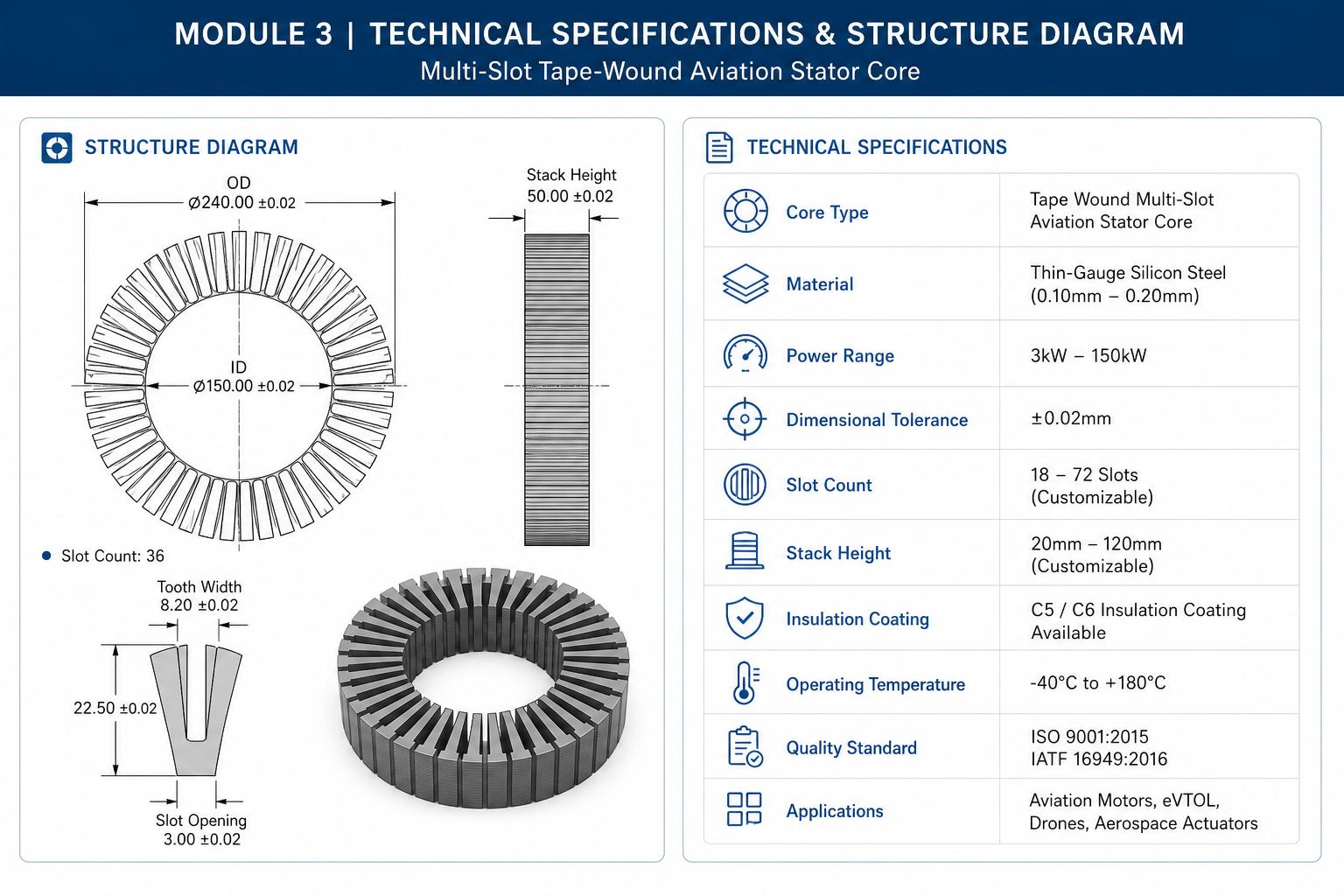

Technical Specifications & Parameter Matrix

Aviation & Unmanned Aerial System (UAS) Applications

Our custom aerospace stator cores provide high-reliability propulsion across electric flight architectures:

• eVTOL Urban Air Mobility (UAM): Powers multi-rotor lift and cruise tilt-rotor propulsion units with high power density and redundant safety margins.
• Heavy-Lift Industrial & Cargo Drones: Delivers massive static thrust for logistical transport, disaster relief, and high-altitude cargo delivery.
• Agricultural Spraying UAVs: Robust, sealed motor construction withstands harsh outdoor chemical environments with high continuous torque.
• Electric Light Sport Aircraft & Paramotors: Compact, low-vibration direct-drive propulsion for single-seat and two-seat electric aircraft.

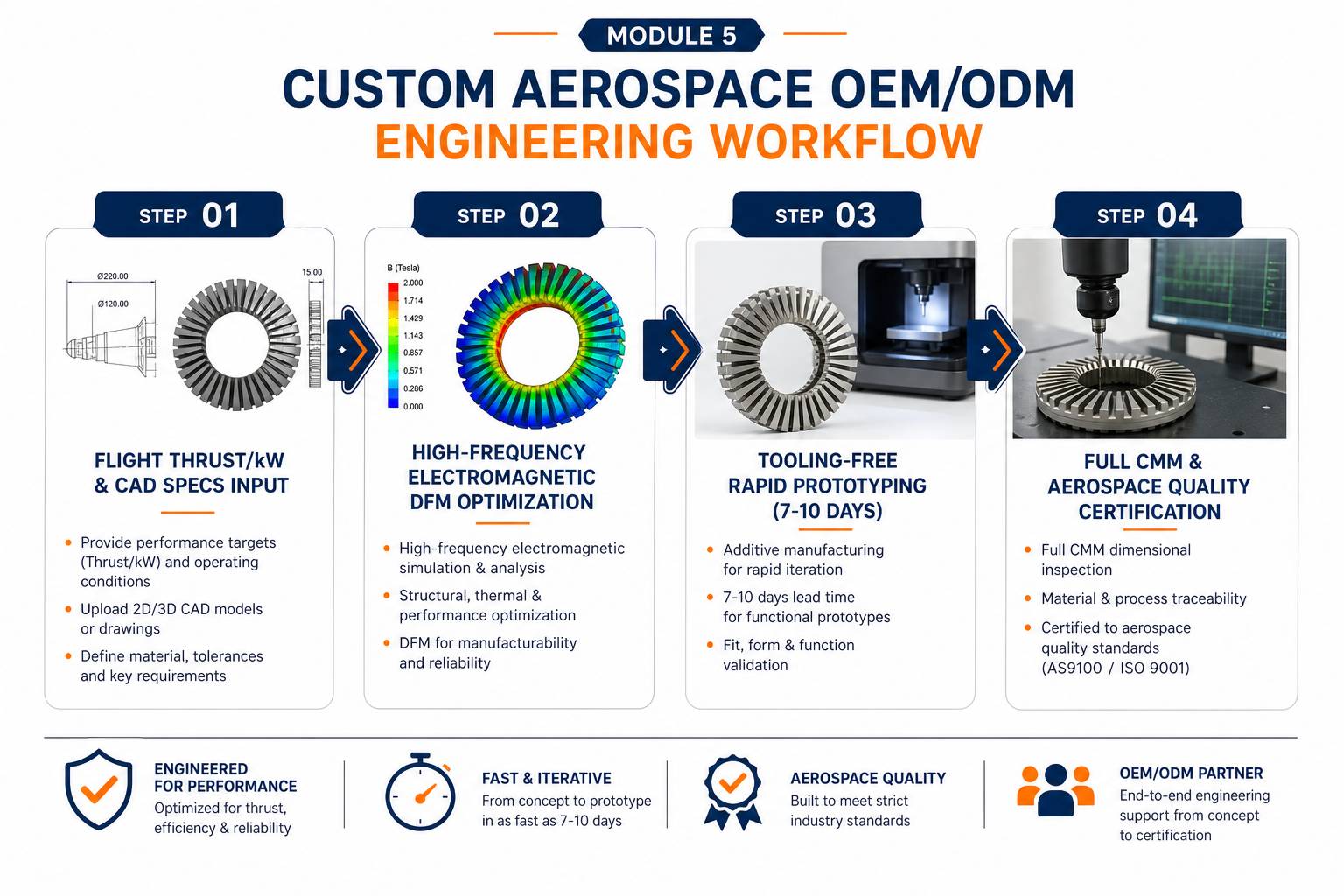

Aerospace Customization & Rapid Prototyping Workflow

We collaborate closely with aerospace propulsion engineering teams from concept to flight test:

1. Propulsion Envelope Definition: Submit thrust requirements (N/kg), rated RPM, DC bus voltage, peak power (kW), and CAD envelope models (STEP/IGES).
2. Electromagnetic & Thermal DFM Analysis: Optimization of silicon steel gauge, slot-opening ratio, back-iron depth, and thermal conduction paths.
3. Tooling-Free CNC Laser Fabrication: Stator cores precision-wound, heat-treated, and laser-profiled within 7–10 business days without progressive die delays.
4. Aerospace QC & CMM Certification: Comprehensive CMM inspection report, core loss testing, and dimensional compliance certification accompanying every shipment.

Precision Manufacturing & Aerospace Quality Standards

Shunge Steel applies strict quality controls to meet demanding aviation reliability standards:

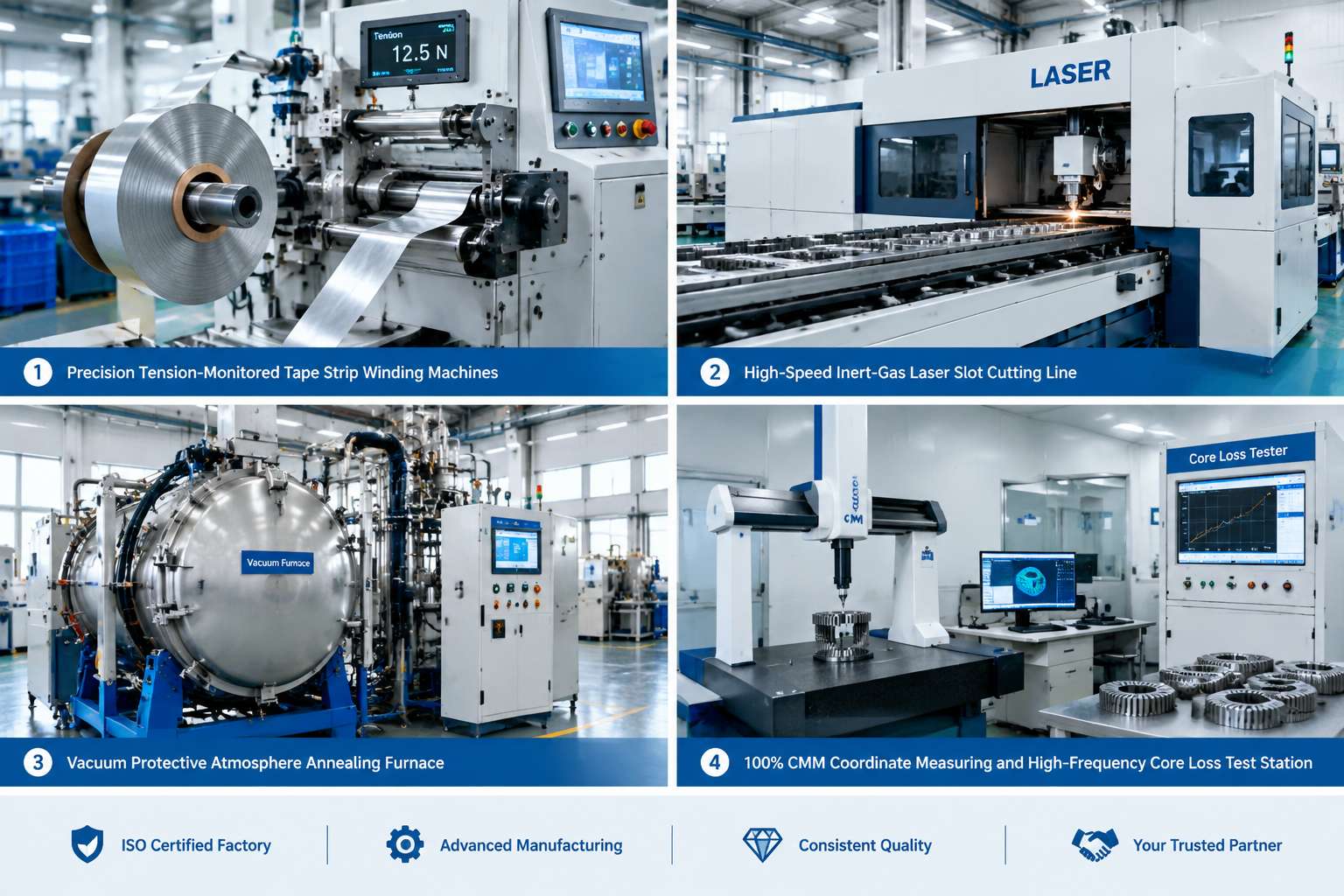

• Precision Tension Control Winding: Eliminates microscopic interlaminar voids, maximizing magnetic packing factor and mechanical rigidity under flight G-forces.
• Ultra-Fine Laser Slotting: Inert-gas cutting creates burr-free, smooth slot walls, preventing insulation damage during high-voltage winding.
• Vacuum Annealing in Controlled Atmosphere: Restores optimal magnetic permeability and eliminates residual mechanical stress from winding and cutting.
• 100% CMM Verification: Individual inspection of axial runout, tooth pitch accuracy, and concentricity for balanced aerodynamic rotor dynamics.

Packaging & Global Air Cargo Logistics

To ensure sensitive aerospace propulsion components arrive in pristine condition:

• Dual-Layer Anti-Rust Protection: Protective oil coating combined with heat-sealed VCI anti-corrosion barrier packaging.
• Custom CNC-Cut EPE Foam Trays: Shock-absorbing foam enclosures isolate each stator core to prevent tooth damage during transit.
• Reinforced Air Freight Packaging: Heavy-duty export boxes with impact-resistant edge protectors suitable for international express and air cargo.

Frequently Asked Questions (FAQ)

Q1: Why are axial flux stator cores preferred for eVTOL and heavy drone propulsion?
A: Axial flux stator cores offer substantially higher torque density and power density (kW/kg) than conventional radial motors. Their large disc diameter allows direct drive of large propellers at optimal aerodynamic RPMs without heavy reduction gearboxes, significantly reducing aircraft empty weight and increasing flight range.

Q2: What is the thinnest silicon steel strip available for high-frequency aviation motors?
A: We routinely process ultra-thin electrical steel strips down to 0.10 mm, 0.15 mm, and 0.20 mm. These thin gauges are critical for suppressing high-frequency eddy current losses in high-RPM drone motors and multi-pole eVTOL inverters.

Q3: Can you accommodate custom center bore diameters for direct hub mounting?
A: Yes. Because all inner and outer diameters are CNC laser cut, we can tailor the center bore to fit your exact central bearing assembly, structural hub, or hollow shaft design.

Q4: Do we need to invest in progressive stamping dies for our prototype aviation motors?
A: No. Our continuous tape-winding and laser-slotting process requires zero tooling investments. You can iterate through multiple design variations (e.g., varying tooth width, stack height, and slot counts) quickly and cost-effectively.

Q5: What documentation is provided with prototype aerospace shipments?
A: Each shipment includes a comprehensive dimensional CMM inspection report, raw material silicon steel mill test certificates, and magnetic core loss verification data.
