Dry-type transformer is a high-safety, environmentally friendly power distribution transformer without liquid oil inside. It adopts high-quality grain-oriented silicon steel core and high-grade epoxy resin insulated windings, featuring low loss, low noise, stable performance and strong fire resistance.

Compared with oil-immersed transformers, dry-type transformers have no leakage risk, excellent moisture and corrosion resistance, and require almost no maintenance. They are widely used in urban power grids, commercial buildings, industrial workshops, schools, hospitals and indoor power distribution occasions where high safety is required.

We support customized voltage, capacity, protection grade and special size to meet different indoor and outdoor power supply needs.

CATÉGORIES DE PRODUITS

Nouveaux produits

Model Series

Energy Efficiency Level

Core Features

Applicable Scenarios

SCB Series

Level 1/Level 2/Level 3

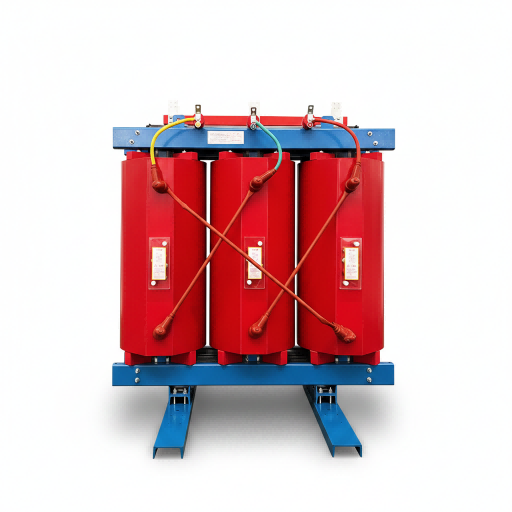

Epoxy resin casting, copper foil winding, low loss

Commercial complexes, industrial parks, high-rise buildings

SGB Series

Class H Insulation

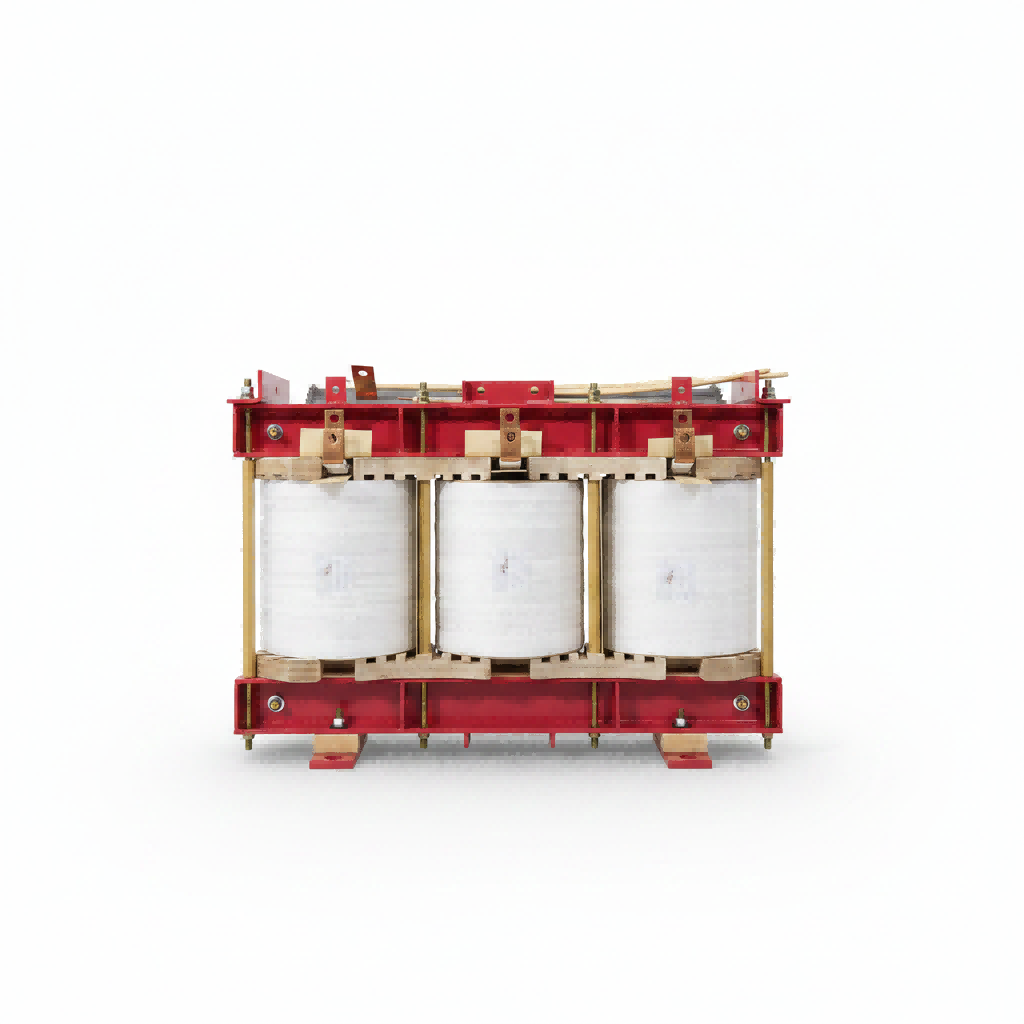

Nomex® insulation material, high heat resistance, strong heat dissipation

High temperature and high load working conditions, harsh environments

SCBH Series

Level 1 Energy Efficiency (Amorphous)

Amorphous alloy iron core, no-load loss reduced by 70%

High energy-consuming enterprises, new energy grid connection

Technical Parameters

Core Performance Indicators

Parameter Item	Standard Range	Technical Highlights
No-Load Loss	Complies with GB 20052-2024 Level 1/Level 2/Level 3 limit values	Amorphous alloy models reduce by 70%-80% with significant energy-saving effect
Load Loss (75℃)	Matching the model standard	Copper foil winding with low loss, low interlayer voltage and strong overvoltage bearing capacity
Short-Circuit Impedance	4%-6%	Match the system short-circuit capacity on demand to effectively limit short-circuit current
Temperature Rise Limit	Winding Class F ≤ 100K (≤ 140℃ at 40℃ ambient temperature)	Iron core temperature rise ≤ 80K, multi-dimensional temperature control ensures stability
Partial Discharge	≤ 10pC	Optimized by vacuum casting process with excellent insulation performance
Noise Level	≤ 55dB (1000kVA AN type)	45° full oblique joint iron core + low-noise design, suitable for sensitive scenarios

Structure & Environmental Parameters

Insulation Class: Class F (mainstream), Class H (SGB series)

Applicable Ambient Temperature: -25℃~+55℃ (low-temperature/high-temperature models can be customized)

Relative Humidity: ≤ 95% (no condensation), suitable for high-humidity environments

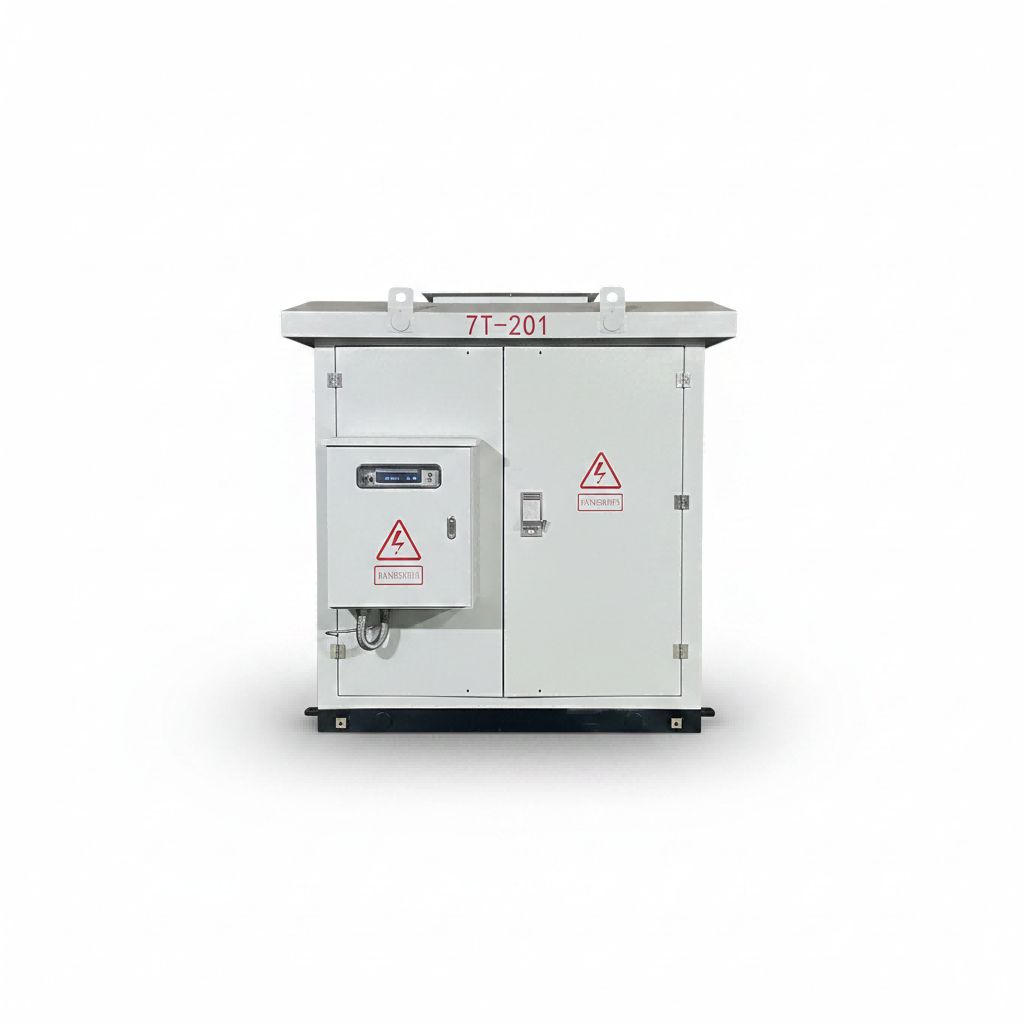

Installation Method: Indoor/outdoor available, vertical/horizontal installation freely adaptable

Authoritative Certifications & Standards

Implementation Standards: GB 1094.11-2007, IEC 60076-11:2004, GB/T 10228-2008, fully complying with national and international standards.

Qualification Certifications: ISO 9001 Quality Management System Certification, KEMA E2/C2/F1 Test Certification, RoHS Environmental Certification, with full traceability of quality.
